Explore Product Details
Designed for Seamless Integration
⬛ Available in 43”, 55”, and 65” sizes for flexible deployment

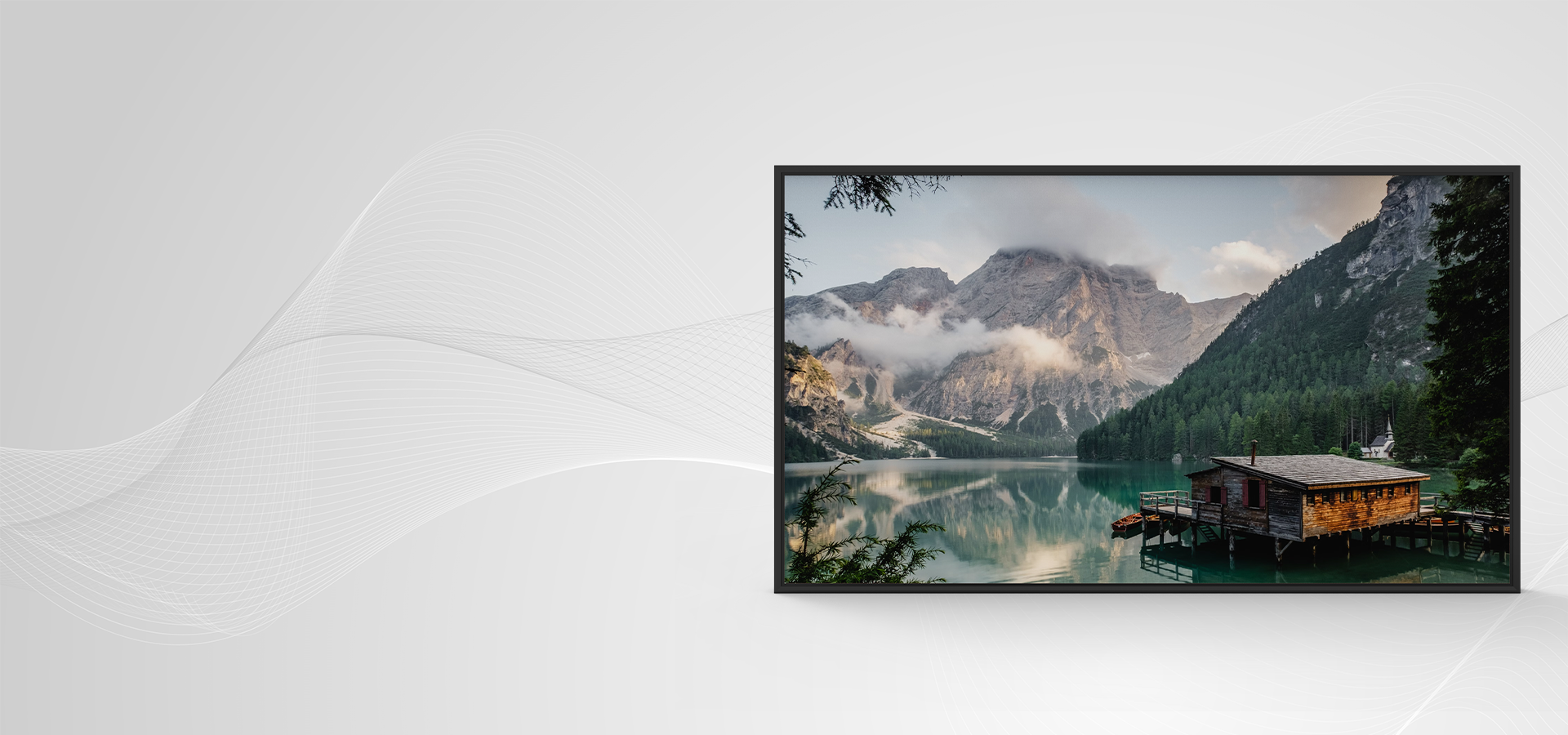

⬛ Ultra-thin wall-flushed design blends perfectly with any environment
⬛ 4K UHD resolution with high color fidelity for crisp visuals
⬛ Wide viewing angles up to 178° horizontal and vertical
⬛ Built-in speakers for clear audio without extra equipment
⬛ Multiple input options including USB, HDMI, and LAN for versatility
Performance and Connectivity
⬛ RK3568 Quad-core A55 processor with Mali G52 GPU for smooth playback
⬛ Supports common video formats including H.264, VP8, MPEG4
⬛ Audio formats supported: MP3, WMA, WAV, FLAC, AAC
⬛ Backlight: E-LED with 500–1500 nits luminance for bright and clear visuals
⬛ Connectivity: LAN, WiFi 2.4G+5G, Bluetooth 5.0 for flexible network integration
⬛ Operating environment: 0–50°C, 10–85% humidity non-condensing
⬛ Wall-mounted with VESA compatibility and included standard bracket
43” Digital Display Board Specifications
The 43”digital display board features an original A-grade high-definition LCD display panel sourced from the globally renowned BOE. Its surface undergoes a matte treatment (Haze 25%). In terms of the backlight, it employs an E-LED side-lighting source with a lifespan of 35,000 hours and a brightness of 500 cd/m², ensuring more uniform display brightness and a broader color gamut. It supports a 7×16 commercial-grade design, demonstrating extremely high reliability and stability. Boasting a rich array of interfaces, it integrates functional interfaces like HDMI-IN, USB, RJ45, TF, and WiFi. The entire device is designed to be ultra-slim, offering convenience in use, an appealing aesthetic, and characteristics such as high brightness, high contrast, and low power consumption. It supports multiple playback options like USB flash drives and finds wide application in supermarket retail, food chains, bank branches, hospital clinics, and luxury stores, facilitating more efficient information dissemination.
55” Digital Display Board Specifications
The 55”digital display board incorporates an original A-grade high-definition LCD display panel from the world-famous BOE. Its surface is treated with a matte treatment (Haze 25%). For the backlight, it adopts an E-LED side-lit light source with a service life of 35,000 hours and a brightness of 500 cd/m², resulting in more uniform display brightness and a wider color gamut. It supports a 7×16 commercial-grade design, possessing extremely high reliability and stability. With a rich variety of interfaces, it integrates functional interfaces such as HDMI-IN, USB, RJ45, and WiFi. The whole machine is designed to be ultra-thin, providing convenience in use, an attractive appearance, and features like high brightness, high contrast, and low power consumption. It supports multiple playback methods like USB flash drives and is widely used in supermarket retail, food chains, bank premises, hospital clinics, and luxury stores, enabling more efficient information transmission. Additionally, it can be customized in terms of capacitive touch, appearance design, and color according to customer requirements.
Open Android 11 Operating System
It has a fully open platform and is equipped with the Android 11 operating system. Users can install and uninstall programs in APK format provided by third-party service providers, such as software, and access the Internet via network cables or wireless networks.
Anti-Glare Matte Display Panel
The surface of the liquid crystal display module is treated with a matte finish, effectively reducing reflection and achieving higher image visibility and information readability under light. It maintains optimal visibility in both bright and dark environments.
Advanced Aluminum Backlight Cooling
The backlight uses an aluminum substrate, enhancing heat dissipation performance. This slows down the light attenuation of the LED backlight module, minimizing the overall impact of the backlight source on the liquid crystal module. Thus, it attains the characteristics of high energy efficiency and extended service life. Meanwhile, it also makes the overall module of the product lighter and thinner.
Durable All-Metal Rear Housing
The rear shell of the whole machine is designed with an all-metal structure, providing protection against radiation, magnetic fields, and strong electrical interference.
RK3568 Quad-Core Performance Chipset
It adopts the Rockchip RK3568 chip, a mid-to-high-end general SoC. Manufactured using 22nm process technology, it integrates a quad-core ARM-architecture A55 processor with a maximum main frequency of 2.0GHz and a Mali G52 2EE GPU. It supports 4K decoding and 1080P encoding.
Smart Pre-Installed Software Support
It can be pre-installed with practical software, incorporating multiple technologies such as multi-unit digital information processing and network multimedia data transmission.
Commercial-Grade 7×16 Reliability
Designed with a commercial-grade standard, it offers high reliability and high stability, supporting 7×16 hours of operation.
65” Digital Display Board Specifications
The 65-inch digital display board adopts an original A-grade high-definition LCD display panel from the internationally renowned BOE. Its surface is treated with a matte finish (Haze 25%). For the backlight, it uses an E-LED side-lit light source with a service life of 35,000 hours and a brightness of 500 cd/m², ensuring more uniform display brightness and a wider color gamut. It supports a 7×16 commercial-grade design, featuring extremely high reliability and stability. With a rich variety of interfaces, it integrates functional interfaces such as HDMI-IN, USB, RJ45, TF, and WiFi. The whole machine is designed to be ultra-thin, providing convenience in use, an attractive appearance, and characteristics like high brightness, high contrast, and low power consumption. It supports multiple playback methods like USB flash drives and is widely applied in supermarket retail, food chains, bank premises, hospital clinics, and luxury stores, enabling more efficient information dissemination.
Terminal Port Interface
Technical Specifications
Detailed technical specifications ensure that every installation meets performance and reliability expectations.
| Display | Resolution: 3840×2160 (4K UHD) with 16:9 aspect ratio, 8-bit color depth for vivid visuals |
| Backlight & Brightness | E-LED backlight with 500–1500 nits luminance, 35000 hours lifespan for long-term reliability |
| Connectivity | USB 3.0×2, TF×1, HDMI IN×1, LAN, WiFi 2.4G+5G, Bluetooth 5.0 for versatile networking |
| Audio | 2×80 5W built-in speakers provide clear and balanced sound for presentations and media playback |
| Physical & Installation | VESA mount compatible, standard wall bracket included, operating temperature 0–50°C |
