LED Display Solutions
Versatile LED Solutions
⬛ Multiple series available: Clarity, Flex, and Precision to suit every environment
⬛ Indoor and outdoor options with pixel pitches from 0.7mm to 5mm
⬛ Robust metal or lightweight cabinets for easy installation
⬛ Vivid color reproduction and high refresh rates for smooth visuals
⬛ Flexible configurations to build small or large-scale LED walls
⬛ Energy-efficient designs to reduce operating costs
⬛ Seamless maintenance with front-access servicing
Engineered for Clarity and Reliability
Clarity Series
⬛ Ultra-fine pitch SMD LED for seamless installations
⬛ Brightness 800 nits indoor with wide viewing angles
⬛ Magnetic mounting and front-access servicing
⬛ Flexible pixel pitch options from 1.2–5mm
Flex Series
⬛ Ultra-thin 8.6mm profile with flexible module design
⬛ High refresh rate 3840Hz and 8000:1 contrast ratio
⬛ Ideal for control rooms, boardrooms, and exhibitions
⬛ Energy-efficient and long-term reliability
Precision Series
⬛ COB technology for ultra-fine indoor visuals
⬛ Brightness 600 nits with flicker-free 3840Hz performance
⬛ Robust die-cast aluminum cabinet, IP65 rating
⬛ Designed for studios, executive spaces, and high-resolution needs
Innovative Cabinet Construction
Each LED series is designed with precision-engineered cabinets and modules to ensure durability, easy handling, and seamless installation. The Clarity, Flex and Precision series feature lightweight or robust metal constructions, magnetic mounting, and modular designs that make assembly and maintenance fast and straightforward. Every component is optimized for long-term performance and professional display quality.
Planning Your LED
Installation
Understand the full dimensions and connectivity options for each LED display series. Detailed diagrams highlight overall display size, module layout, and available ports including HDMI, USB, LAN, and power connections. This ensures precise planning for both small-scale and large-scale installations in any indoor or outdoor environment.
From Panel to Performance, in a Flash
The LED Company is Singapore’s leading provider of cutting-edge LED display solutions, specialising in the supply, installation, and distribution of high-quality LED walls and panels across a wide range of industries. With a strong commitment to innovation, reliability, and customer satisfaction, we bring dynamic visual experiences to life — from retail and hospitality environments to corporate spaces, entertainment venues, exhibitions, and public installations.

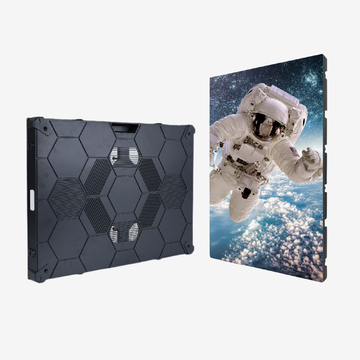

Indoor/Outdoor SMD LED Display
CLARITY Series
The CLARITY Series is a high-performance LED display designed for both indoor and outdoor spaces that demand clarity, compactness, and clean installation. Available in multiple pixel pitches, it delivers sharp visuals even at close range. With a slim cabinet and ultra-light weight, the CLARITY Series is easy to handle and features magnetic mounting for rapid, seamless installation. Built-in power, signal, and receivingcard ports reduce cabling, while front-access servicing ensures ongoing maintenance is effortless. Delivering a high refresh rate, 16-bit grayscale, and optimal brightness levels, the CLARITY Series offers vivid, flicker-free performance — perfect for all your indoor and outdoor needs.
SPECIFICATIONS
| Pixel Pitch | P1.2/1.5/1.8/2/2.5/3/4/5mm |
| LED Type | SMD |
| Module Size | 320 x 160mm |
| Cabinet Size | 480 x 320 x 52mm |
| Brightness | 800nits (Indoor) |
| Viewing Angle(H)/(V) | 140° |
| Material | Die-cast aluminum |
| Cabinet Weight | 8kg |
| IP Rating | IP53 - IP65 |
| Power Max | 250W/m2 |
| Maintenance Access | Front |

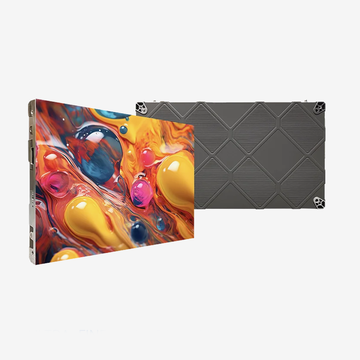

PRECISION Series
The PRECISION Series redefines high-resolution indoor display with advanced Chip-on-Board (COB) technology. Designed for refined environments, it delivers exceptional clarity, seamless surfaces, and long-term reliability. Engineered with a die-cast aluminum cabinet, the PRECISION Series offers robust protection against dust, impact, and moisture — while maintaining sleek aesthetics. With 600nits brightness, 3840Hz refresh rate, and up to 16-bit grayscale, it ensures smooth, flicker-free performance ideal for control rooms, studios, and executive spaces. Combining power-saving technology with minimal pixel failure, the PRECISION Series is a smart, future-ready solution for immersive indoor display.
SPECIFICATIONS
| Pixel Pitch | P0.7/1.2/1.5/1.9mm |
| LED Type | COB |
| Module Size | 150 x 168.75mm |
| Cabinet Size | 600 x 337.5 x 37mm |
| Brightness | 800nits |
| Viewing Angle(H) | 170° |
| Viewing Angle(V) | 160° |
| Material | Die-cast aluminum |
| Cabinet Weight | 4.5kg |
| IP Rating | IP65 |
| Power Max | 300W/m2 |
| Maintenance Access | Front |

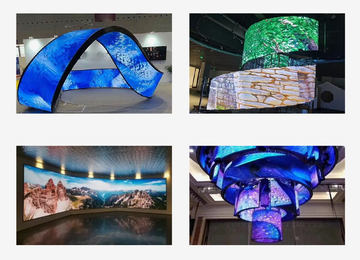

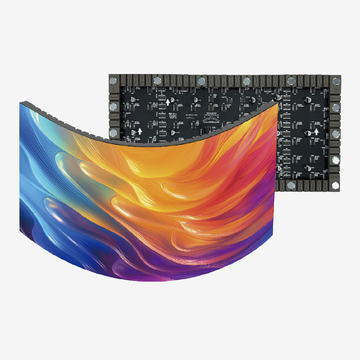

FLEX Series
The FLEX Series is a high-performance indoor LED display designed for professional environments requiring clarity, precision, and reliability. With pixel pitches from 1.5mm to 4mm, it delivers ultra-clear visuals, supported by a 3840Hz refresh rate and 8000:1 contrast ratio. Its ultra-thin 8.6mm profile, flexible module design, and reinforced PCB make installation easy and longterm use dependable. Ideal for control rooms, boardrooms, and exhibition spaces, the FLEX Series combines sleek aesthetics with energyefficient, high-impact performance.
SPECIFICATIONS
| Pixel Pitch | P1.5/1.8/2/2.5/3/4/mm |
| LED Type | SMD |
| Module Size | 320 x 160 x 8.6mm |
| Brightness | 650-750nits |
| Viewing Angle(H) | 150° |
| Viewing Angle(V) | 120° |
| Min. Assembly Diameter | Ø407 |
| Material | Silica gel |
| Cabinet Weight | 0.34kg/panel |
| Power Max | 430W/m2 |
| Operating Temperature | -20 ~ 40°C |
| Maintenance Access | Front or rear |
Interested in learning more?
Speak to our team about the right LED solution for your space.
